Coating Design Development

Development is a procedure to get correct thin film design based on spectrum or color target through solving equations with many strategies.

Development can be done without occupying the time for production. Imitation or customized color need enough time to design the thin film stack and get the required spectrum, color and also taking into account the physical properties such as resistivity, resistance Acid and alkali, abrasion resistance and so on.

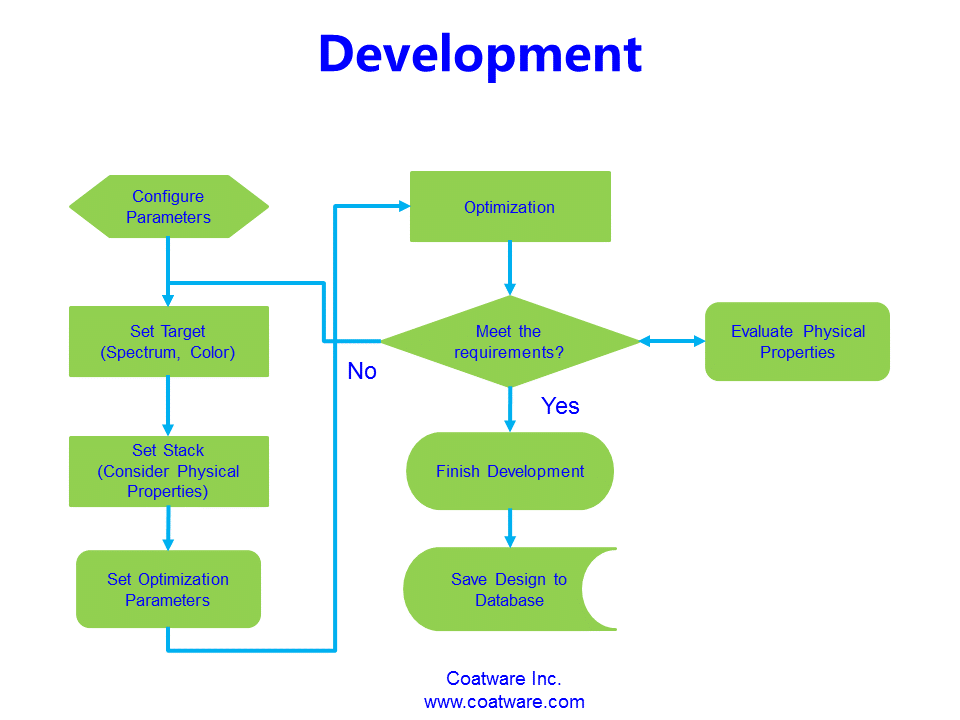

Config Params

Set Target

Set Structure

Set Opt Params

Optimize System

达到要求？

End

Save to DB

Est Props

否

是

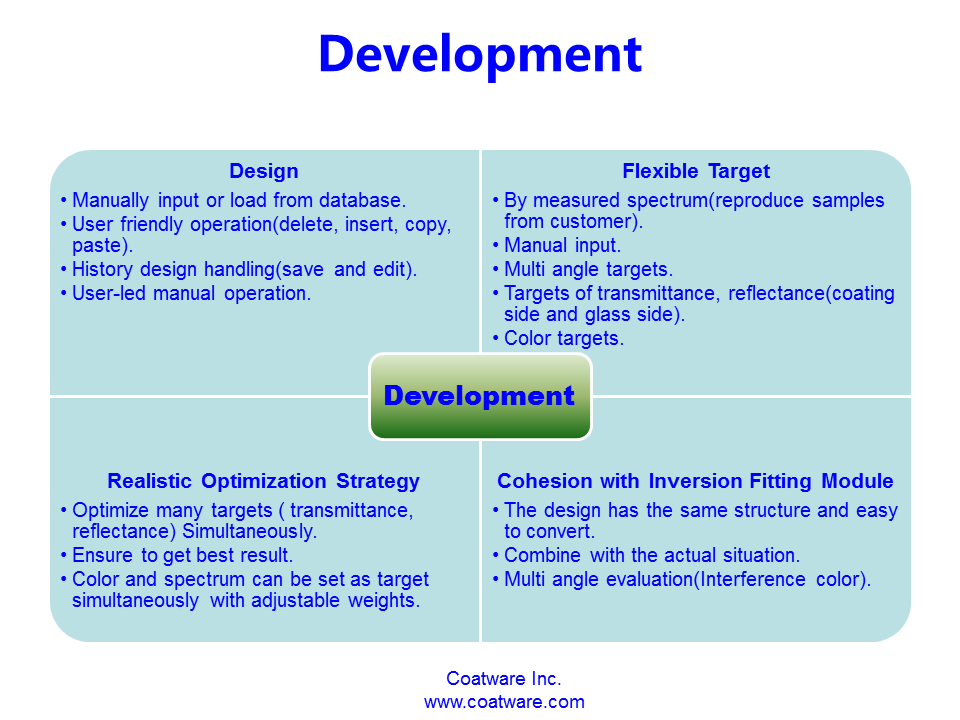

Coating System

Can be input manually or imported
Convenient user operations (delete, insert layers);
Save and process historical design systems;
Various manual adjustment operations (user-led);

Flexible Development Targets

Based on user test spectrum (custom-made);
User manual input
Multi-angle targets
Transmittance, front/back reflection targets
Color targets

Practical Optimization Strategies

Simultaneously optimize transmittance, front/back reflection;
Ensure optimal results are obtained
Color and spectrum can be targeted simultaneously with adjustable weights

Integration with Reverse Fitting

Identical coating structures for easy conversion;
Combined with actual conditions;
Multi-angle evaluation (interference colors);

Coating Development
