Refractive Index

Refractive-index Curves​

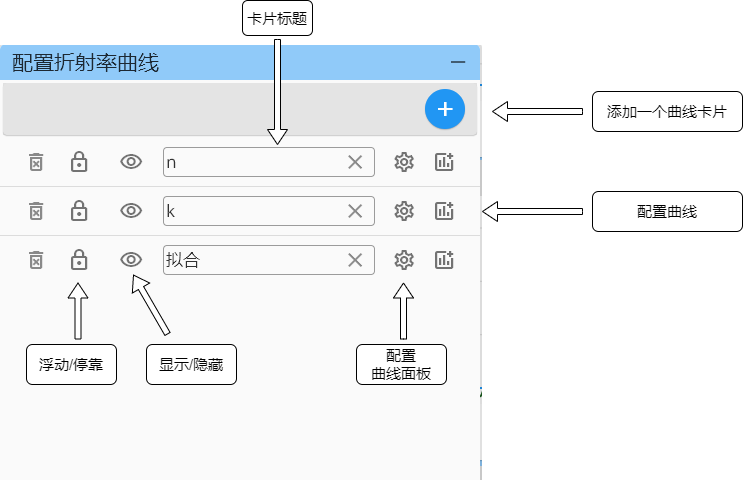

Configure refractive-index curves shown in the center panel. You can display defined indices (substrate, protective layer), imported indices, and fitted indices.

config-chart

For card-panel settings see: Card panel settings

config-curve

Click Color to change curve color.

Click n/k to switch between refractive index n and extinction coefficient k.

config-curve-source

Import Refractive Index​

Users can import refractive-index data for comparison and analysis.

config-load-index

Click the right-arrow button of each entry to open Refractive-index Editing Table.
